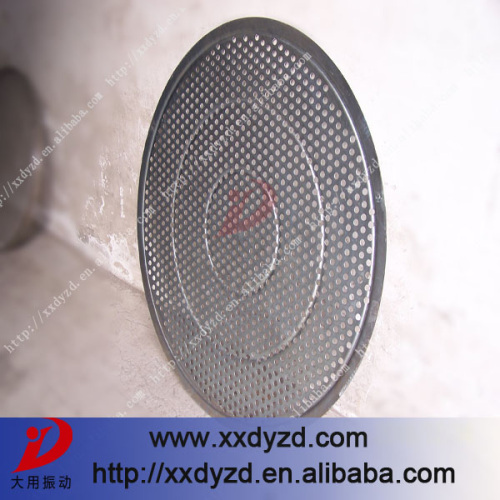

stable stainless steel vibrator screen for slurry

Features

1.Ensure the nature of the screened materials unchanged.

2.Automatic discharge of impurities and coarse materials, and operation can be automated

3. High efficiency, refined design, duration, mainly used in liquid/slurry field.

4. The outlet's location can be adjusted to anywhere you need. It is very easy to form producing line.

5. Discharge the impurity and coarse materials automobile and operates continuously.

6. Extremely attractive design and completely portable (optional casters available). Truly a multi purpose unit.

Working principle
Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a

vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined

movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the

 top and bottom can change trajectories of the materials on the sieve.

Technical parameter
